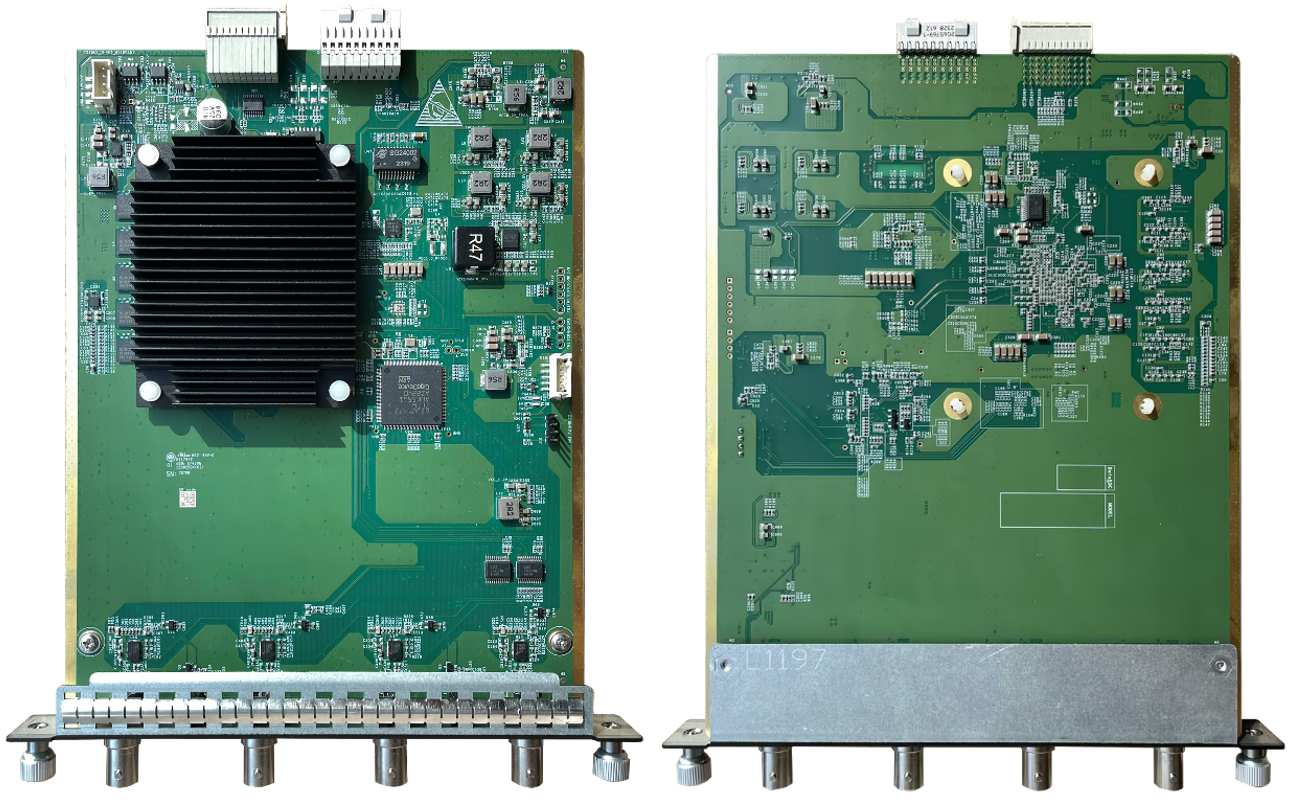

¶ Appearance
¶ Interface
| Type | Qty | Description | |
| 12G-SDI | 4 | Standards |
Support ST-2082 (12G), ST-2081 (6G), ST-424 (3G) and ST-292 (HD) standard video inputs. Support 3G-Level A/Level B (DS mode). |
| Resolution |
Max resolution: 4096×2160@60Hz Min resolution: [email protected] |
||
| Frame rate | 23.98/24/25/29.97/30/47.95/48/50/59.94/60 Hz | ||
| HDR | HDR video is accepted with manual HDR configuration in VMP. | ||
| Interlaced signal inputs | Support interlaced signal inputs, including 1080i/576i/480i. | ||
| Cables | Recommend using the CANARE-12G SDI coaxial cable. Cables up to 50 meters are supported. | ||
¶ Indicator Status
- On: The input source is normal.
- Off: No input source or the input source is abnormal.
¶ Video Source Specifications
| Input | Resolution | Color Space | Sampling | Bit Depth | Integer Frame Rate (Hz) | |
|---|---|---|---|---|---|---|
| 12G-SDI | 4K | 4096×2160 | YCbCr | 4:2:2 | 10bit | 24/25/30/48/50/60 |
| 3840×2160 | ||||||
| 2K1K | 2048×1080 | |||||
| 1920×1080 | ||||||
Note:
The table above only displays a selection of common resolutions and integer frame rates. Decimal frame rates are also supported, allowing for automatic frame rate adaptation from the highest frame rate of each resolution down to 23.98/29.97/47.954/59.94 Hz.
¶ Specifications
| Electrical Specifications | Power Consumption | 26.3 W |
| Operating Environment | Temperature | –10°C to +45°C |
| Humidity | 0% RH to 80% RH, non-condensing | |
| Storage Environment | Temperature | –10°C to +60°C |
| Humidity | 0% RH to 90% RH, non-condensing | |
| Physical Specifications | Dimensions | 247.1 mm × 193 mm × 24.8 mm |
| IP Rating | IP20 (Please prevent the product from water intrusion and do not wet or rinse the product with water). | |
