¶ Appearance
¶ Front Panel
| Indicator | Color | Status | Description |
|---|---|---|---|
| 1–16 | Green | Always on | The Ethernet cable connection is normal. |
| Yellow | Flashing | There is data transmission. | |
| Always on | There is no data transmission. | ||
| OPT1–OPT4 | Green | Always on | The optical fiber connection is normal. |
| PWR | Red | Always on | The power supply is normal. |
| STAT | Green | Flashing | The device is functioning normally. |

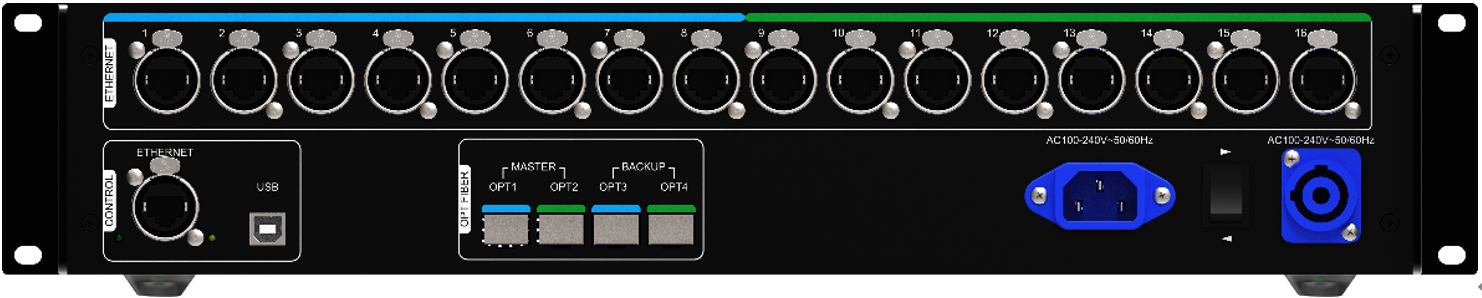

¶ Rear Panel
| Input and Output | ||
|
OPT1–OPT4 |
4x optical ports for data input or output OPT1 corresponds to Ethernet ports 1–8 and OPT2 corresponds to Ethernet ports 9–16. OPT3 is the backup of OPT1 and OPT4 is the backup of OPT2. |
|
|
Description of the optical module:
|
Optical fiber selection:
|
|
|
1–16 |
16x Neutrik Gigabit Ethernet ports for data input or output |
|
| Control | ||
|
ETHERNET |
Ethernet port for control computer connection |
|
|
USB |
Type-B USB port for control computer connection, not for cascading |
|
| Power | ||
| AC 100-240V~50/60Hz |
Power input connectors, including a 3-pin power socket and a PowerCON socket For the PowerCON connector, users are not allowed to plug in hot. Pour le connecteur PowerCON, les utilisateurs ne sont pas autorisés à se connecter à chaud. |
|
¶ Dimensions
Tolerance: ±0.3 Unit: mm
¶ Specifications
| Electrical Specifications | Power Supply | AC 100 V to 240 V, 50/60 Hz, 1.6 A |
| Rated power consumption | 10 W | |
| Operating Environment | Temperature | –20°C to +60°C |
| Humidity | 10% RH to 90% RH, non-condensing | |
| Storage Environment | Temperature | –20°C to +70°C |
| Physical Specifications | Dimensions | 482.6 mm × 377.0 mm × 96.0 mm |
| Net weight | 4.6 kg | |
| Packing Information | Carrying case | 530.0 mm × 193.0 mm × 420.0 mm, white cardboard box |
| Accessory box |
405.0 mm × 290.0 mm × 48.0 mm, white cardboard box Accessories: 1x Power cord, 1x Ethernet cable, 1x USB cable, 12x M4*10 screws |
|
| Packing box | 550.0 mm × 440.0 mm × 210.0 mm, craft paper box |
The amount of power consumption may vary depending on factors such as product settings, usage, and environment.
¶ Certifications
CE, RoHS, FCC, UL&CUL, EAC, CB, IC, RCM
If the product does not have the relevant certifications required by the countries or regions where it is to be sold, please contact NovaStar to confirm and address the problem. Otherwise, the customer shall be responsible for the legal risks caused or NovaStar has the right to claim compensation.
