¶ Applicable Products
| Product Type | Product Model | Version |
|---|---|---|
| LED display controller |
Single-card controllers: MX40 Pro, MX30, MX20, KU20, CX40 Pro Card-based controllers: MX6000 Pro, MX2000 Pro |
V1.5.0 |
| Software | VMP | V1.5.0 |
¶ Function Scope
The following operations can be performed through SNMP:
- Controller information obtaining
- Screen information obtaining
- Retrieve Cabinet Information
- Controller status obtaining and reporting
- Input source status obtaining and reporting
- Ethernet port status obtaining and reporting
- Receiving card status obtaining and reporting
- SNMP reporting target server (IP/port number 162)
- SNMP reporting period (range: 1-60, unit: minute)
¶ Operating Procedure
Use the controller's LCD menu to configure SNMP settings. Once enabled, you can test functionalities with MIB software. Enter the corresponding OID to "Get" the monitoring item, or "Set" to configure operations. Enable Trap listening to monitor reported items. Specific operations are as follows:
¶ Enable SNMP via Controllers
¶ MX40 Pro, MX30, MX20, KU20
On the main menu screen, choose Communication Settings > Network Settings.
Toggle on or off SNMP.
¶ MX6000 Pro, MX2000 Pro, CX40 Pro
Select Communication > Protocol from the main menu to access the settings interface.
Toggle on or off SNMP.
¶ Retrieve Monitoring Information via a Get Request
Open the MIB Browser to enter the software interface.

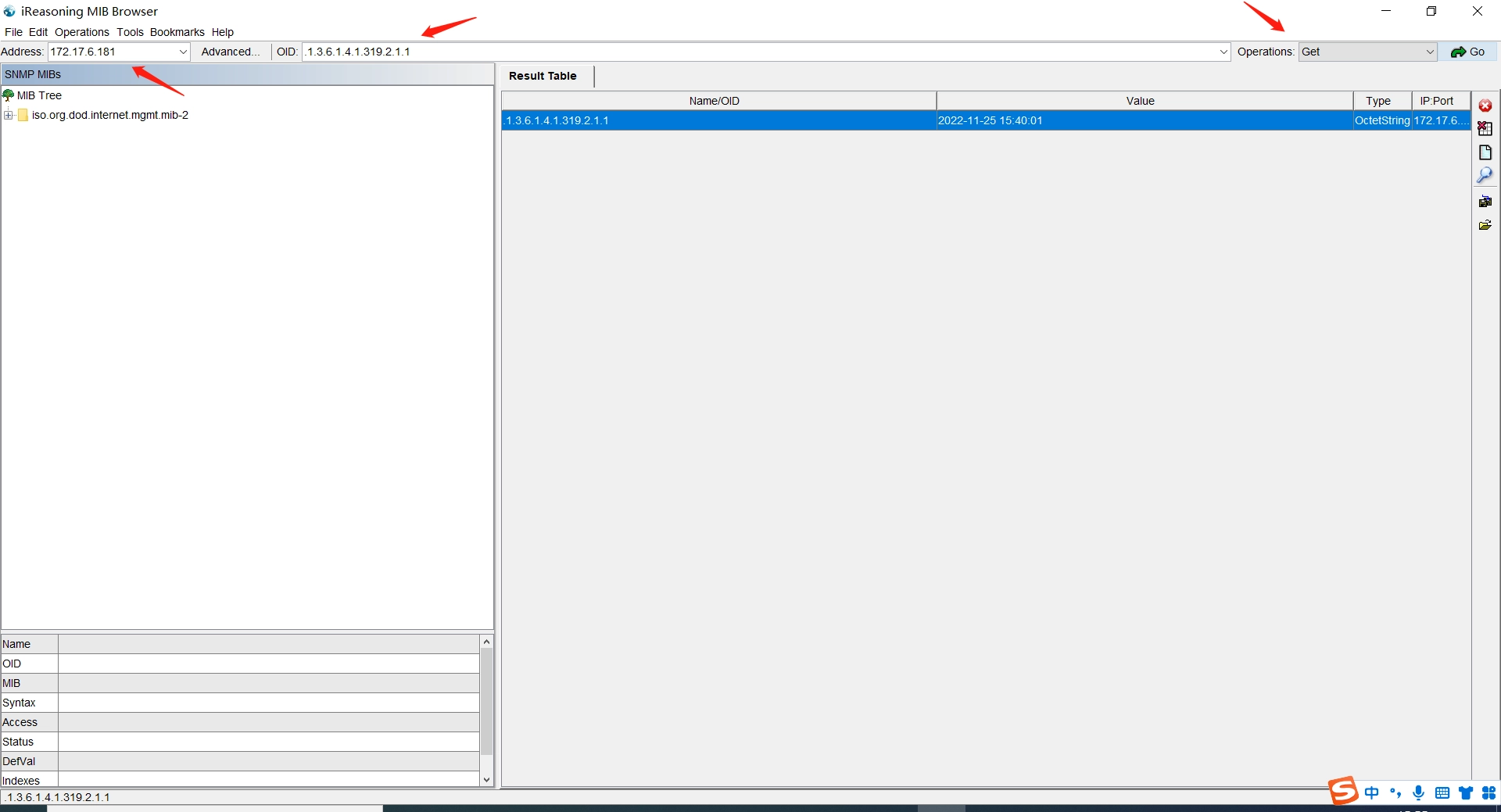

By following the arrows in the figure below in order, fill in the correct device IP address and the OID corresponding to the monitoring item information in the picture, select Get in the Operations drop-down list, and finally click the Go button to complete the operation of getting the monitoring item information by Get.
The execution results are displayed in the Result Table area, and the information contains the OID address, the results of the monitored items returned, the data type and the device IP, as shown in the figure.

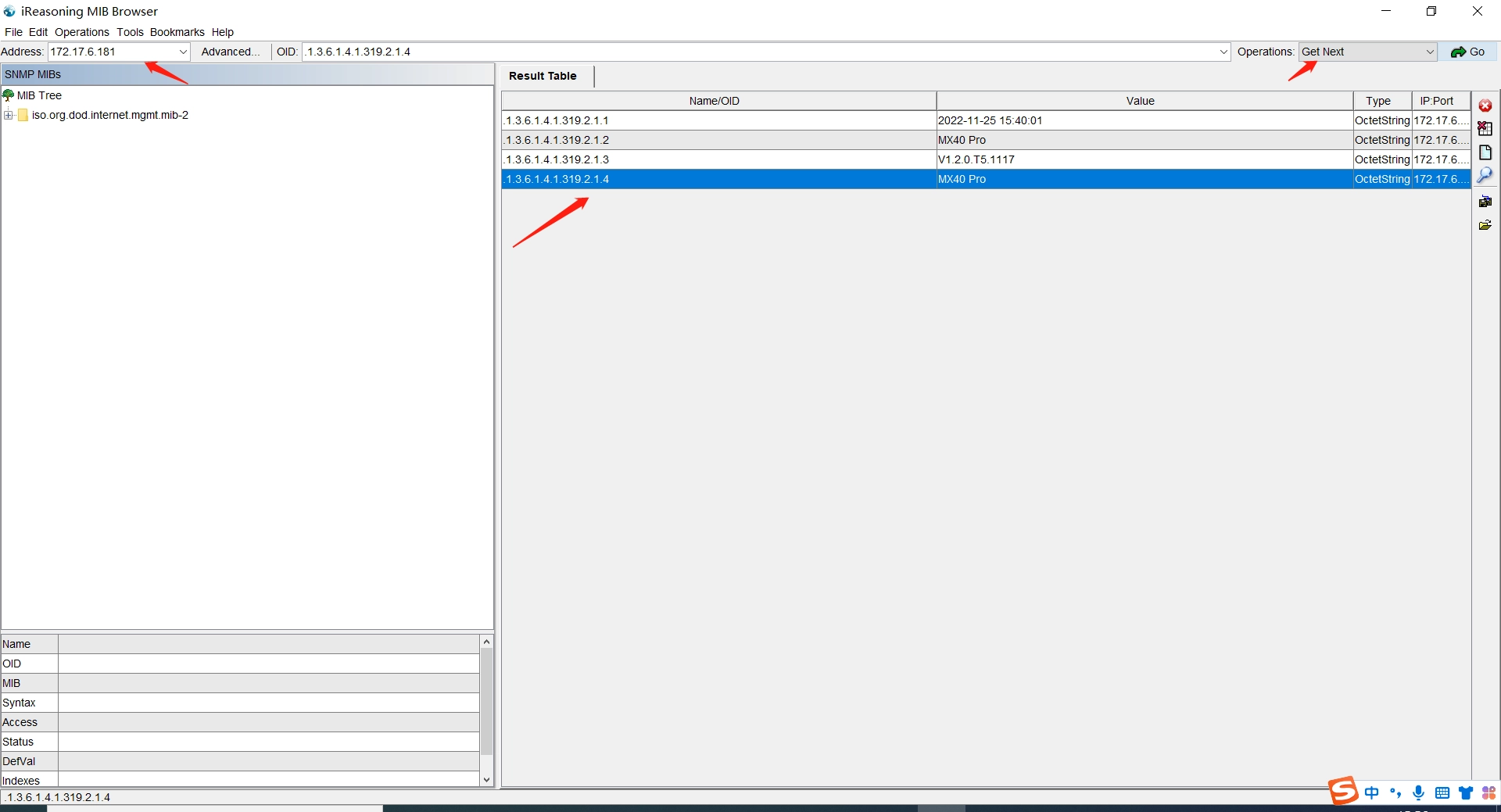

For other monitoring items in the same category, select Get Next from the Operations dropdown list and click the Go button to retrieve them, as shown in the image below.
¶ Perform a Set Request for Function Configuration
Open the MIB Browser to enter the software interface.
Fill in the correct device IP address and the OID corresponding to the monitoring item information at the top of the page, select Set in the Operations drop-down list and Click the Go button.

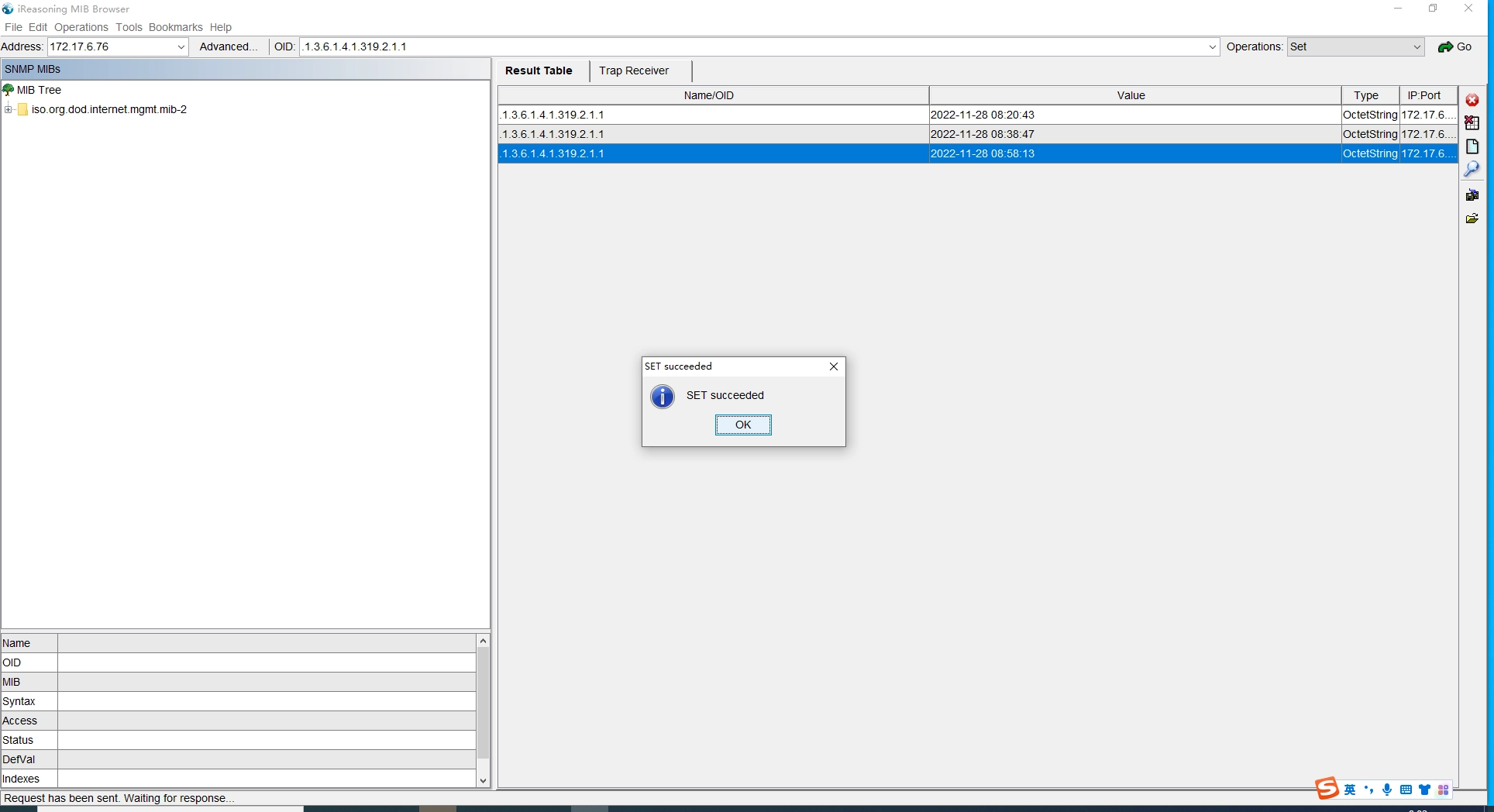

Fill in the correct OID in the OID input box of the pop-up SNMP SET edit area, select the corresponding type of the parameter to be sent in the Data Type drop-down list, and fill in the parameter value in the Value input box. After that, click the OK button to complete the report target setting operation.
¶ Get Trap Reporting Information
Open the MIB Browser to enter the software interface.
Fill in the correct device IP address and the OID corresponding to the monitoring item information at the top of the page, select Set in the Operations drop-down list and click the Go button.

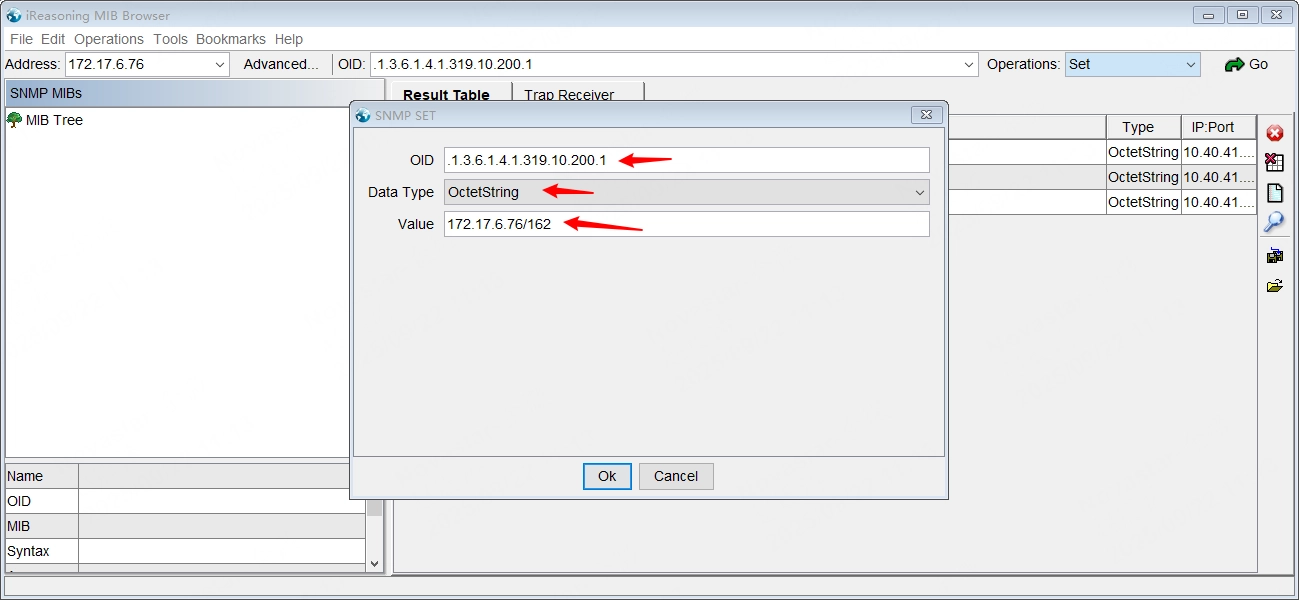

In the OID input box of the pop-up SNMP SET edit area, fill in 1.3.6.1.4.1.319.10.200.1, select the corresponding type OctetString of the parameter to be sent in the Data Type drop-down list, and fill in the parameter value 172.17.6.179/162 in the Value input box (recommended port: 162).
Click the OK button to complete the SNMP Trap server setup operation.

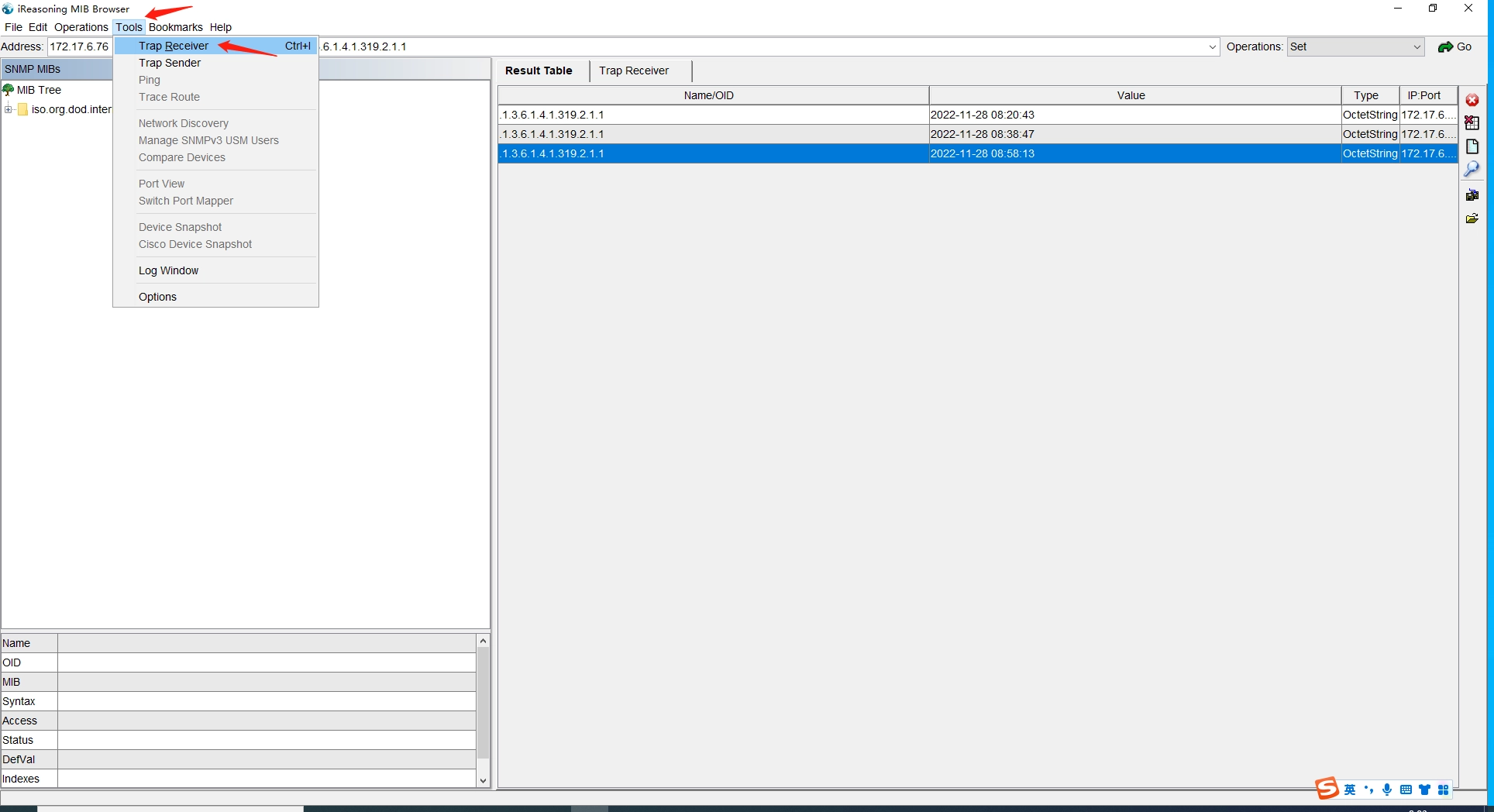

Click on the Tools option in the menu bar of the software and select the Trap Receiver option in the drop-down menu that opens to complete the operation of getting information of monitoring items by Trap.
Note:

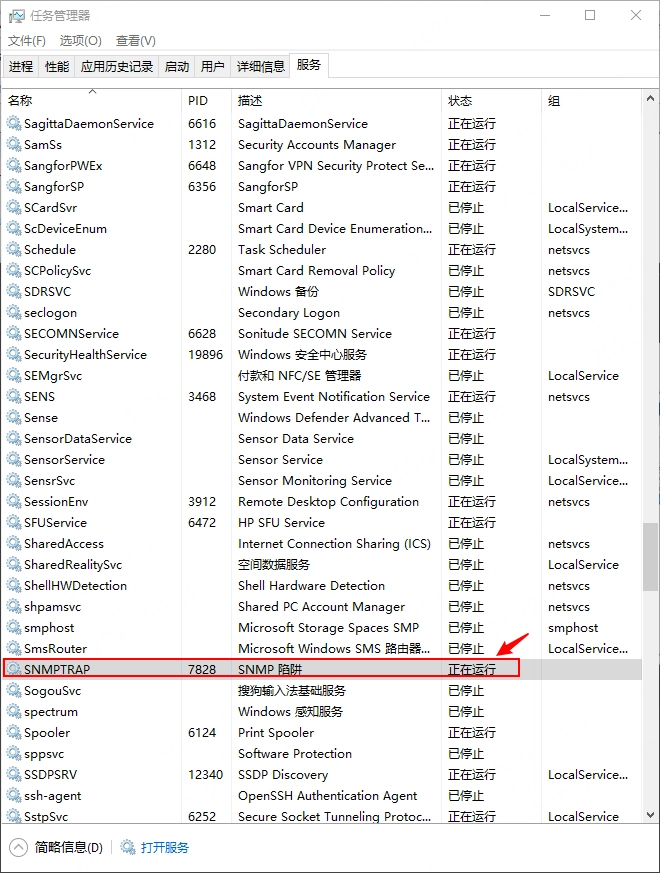

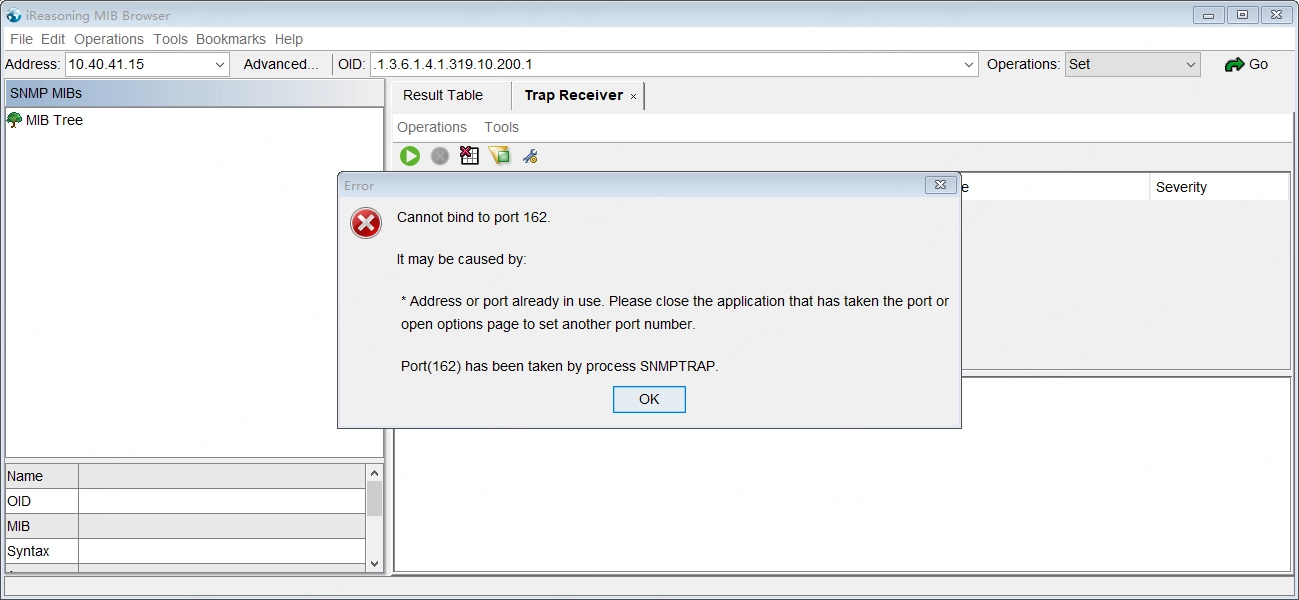

If the Windows operating system is using port 162, an error message will appear. To resolve this, close the SNMP TRAP service in the Task Manager to enable proper listening.

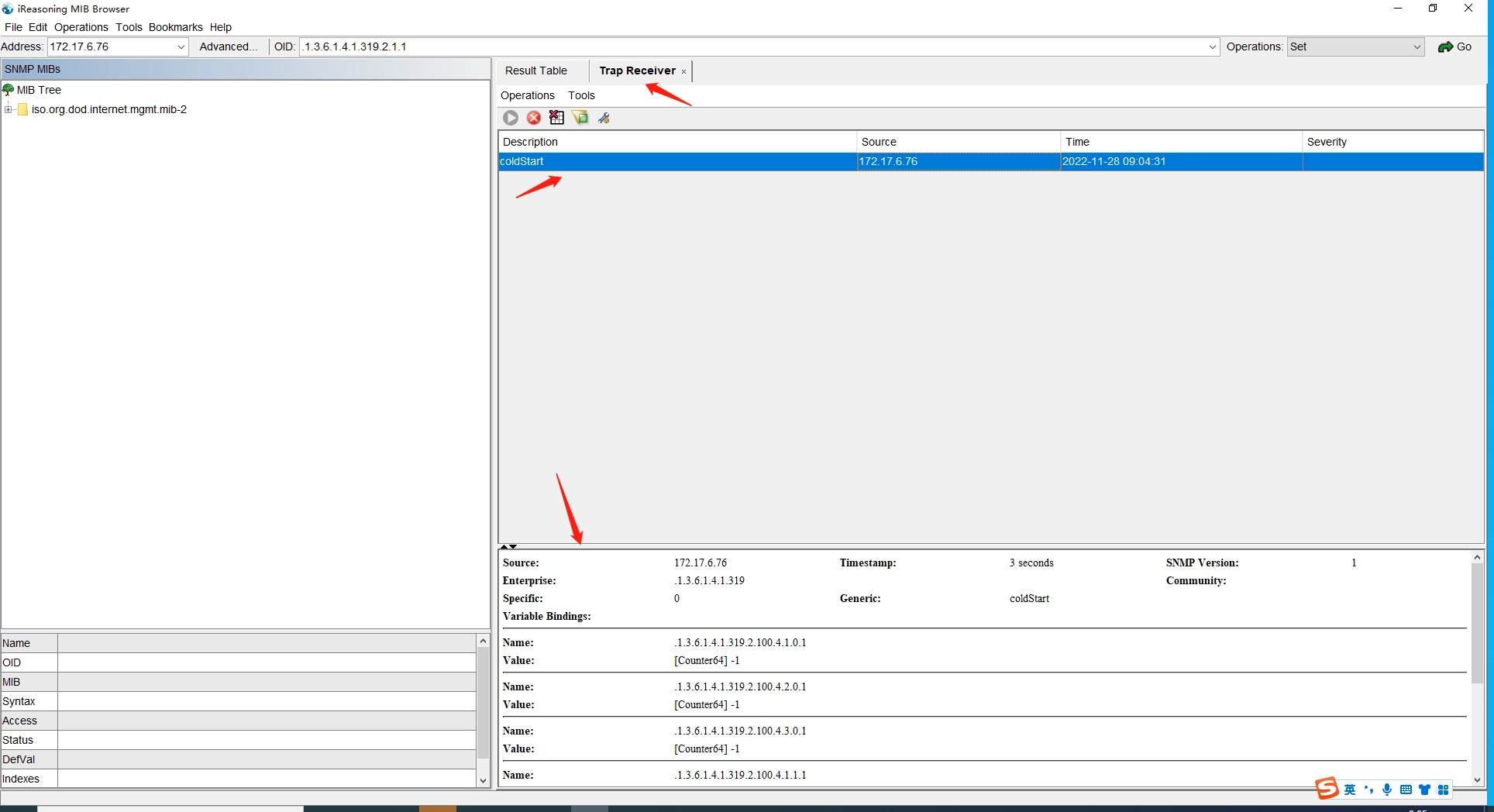

The execution results are displayed in the Trap Receiver area, as shown in the figure. Detailed information can be viewed in the details display area below by clicking on the specific entry in the Description.
¶ Examples
Software Used: MIB Software
- Get Example:

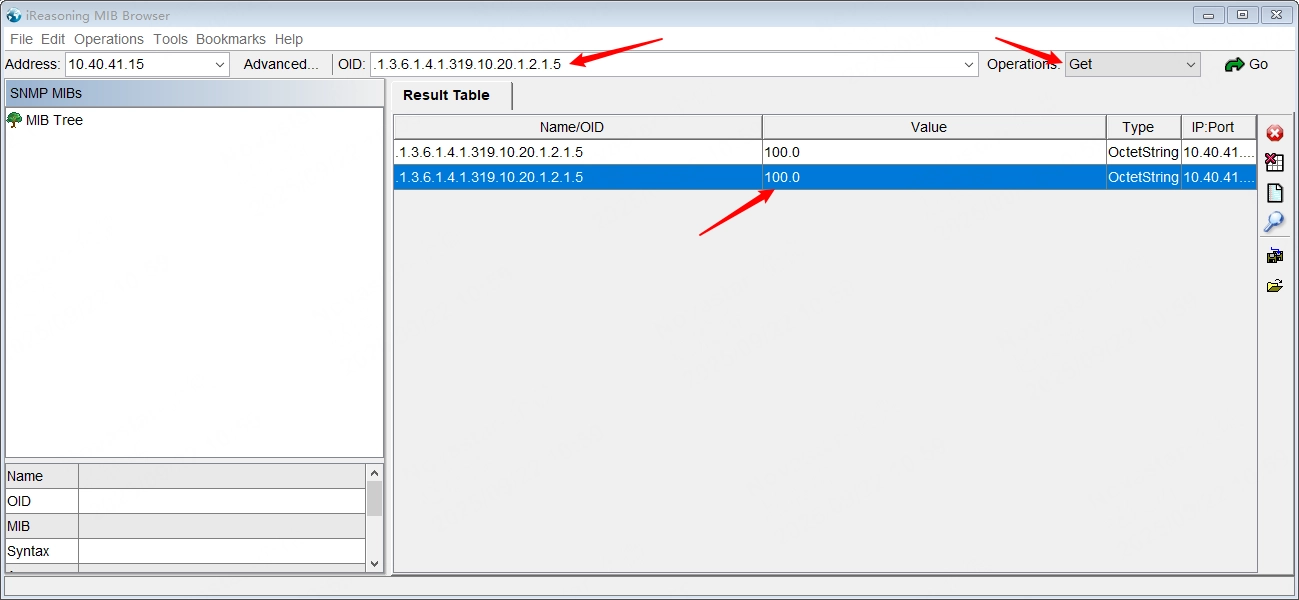

Example 1 (Typical scenario): Test retrieving the current screen brightness. The value obtained is 100, indicating the screen brightness is at 100%.

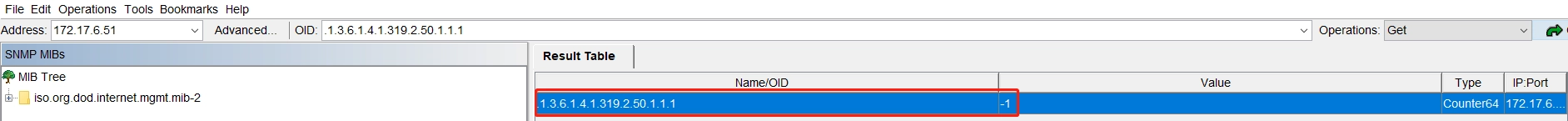

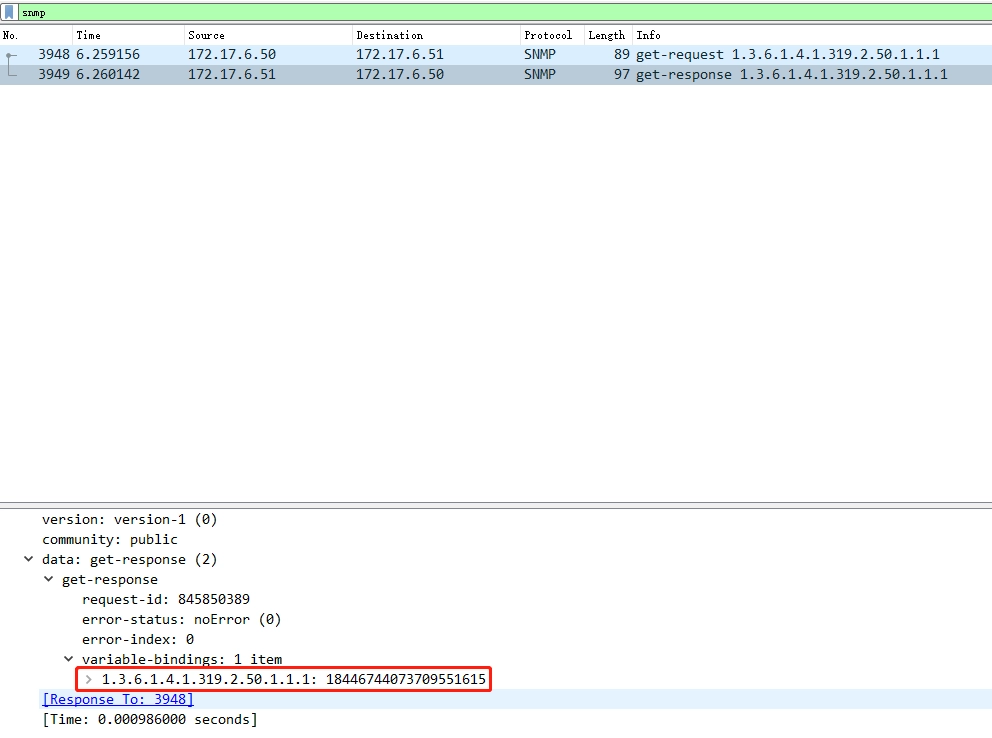

Example 2 (Software limitation, unsupported uint64 display): When testing the connection status of receiving cards 1-64 under Ethernet port 1, the value obtained is -1. The MIB software will treat the highest bit as a symbolic bit and all Get or Trap data in int64 type will be in this situation. At this time, use wireshark to capture packet for test:
- Set Example:
Set screen brightness to 0.

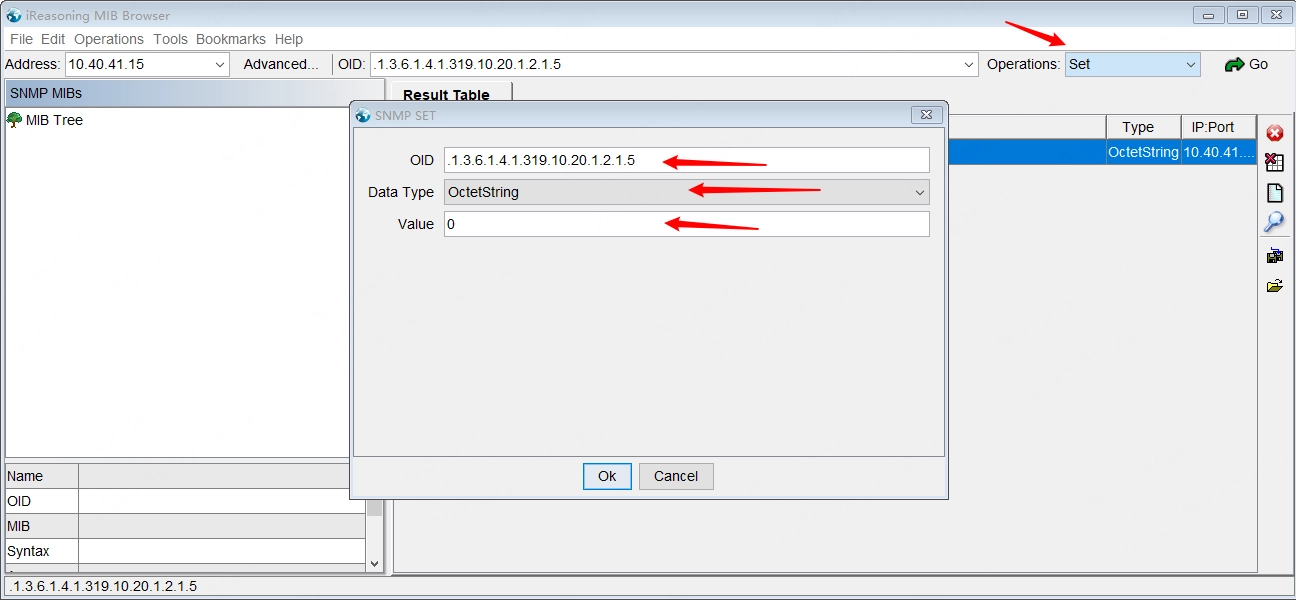

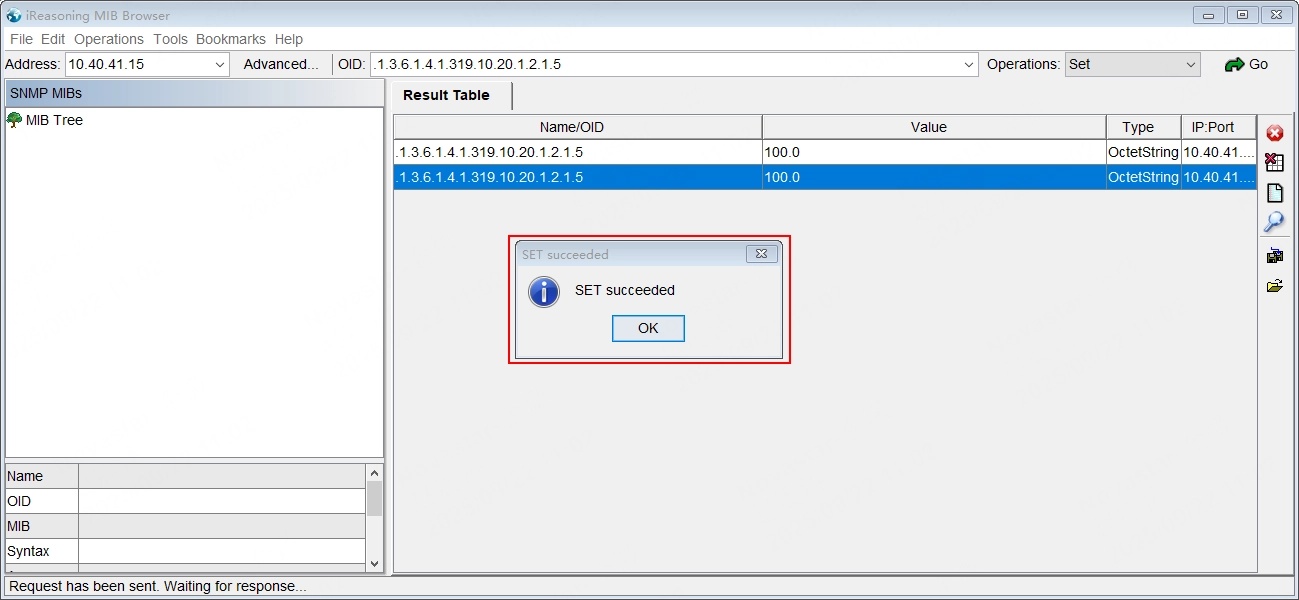

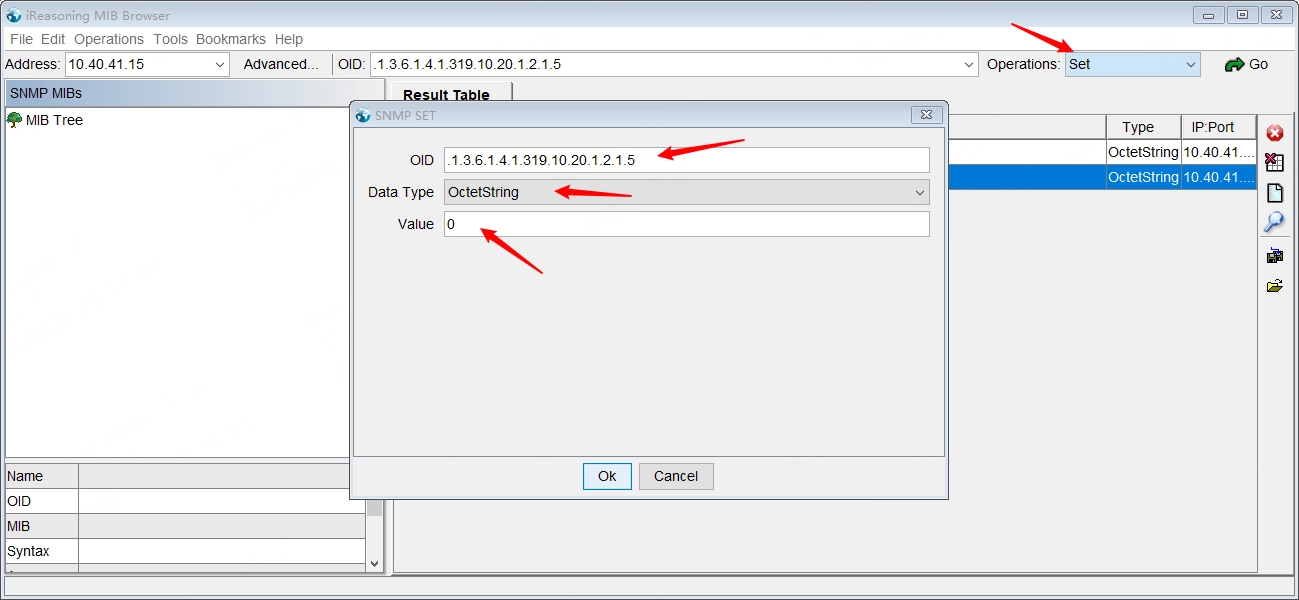

Enter the OID for setting screen brightness, select Set as the operation type. In the popup input box, set the brightness to 0 and click OK. A SET succeeded message will confirm the setting was successful.

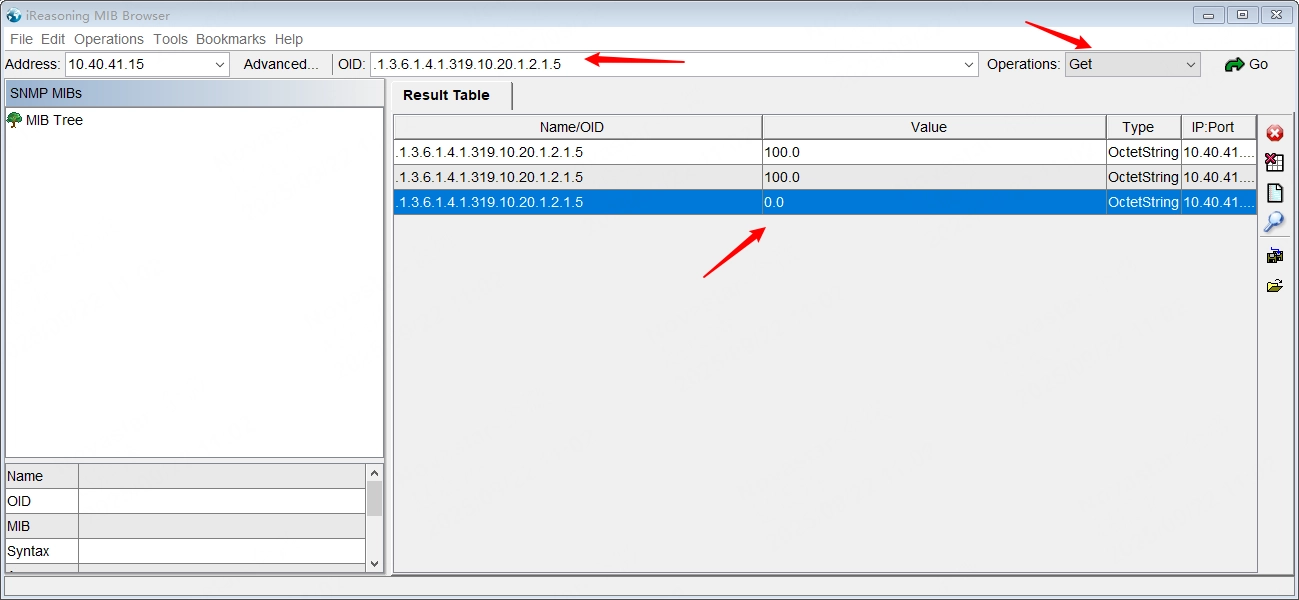

Then, choose Get to check the current screen brightness, or look at the screen to confirm it's at 0%.
- Trap Example:

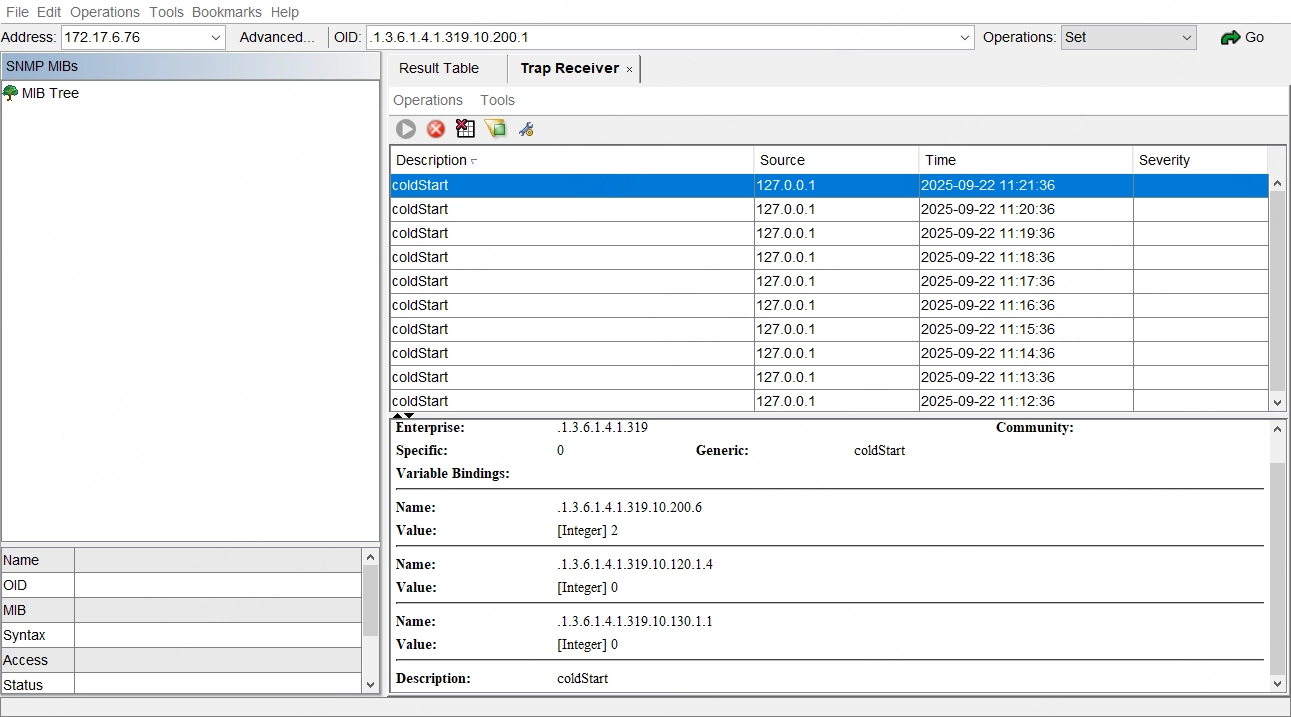

To test the connection status change of receiving cards 1- 64 under Ethernet port 1, you can manually unplug and then plug the receiving cards to cause changes. Under normal conditions, 1.3.6.1.4.1.319.10.200.6 reports 0 (normal). If the Ethernet cable on port 1 is disconnected, 1.3.6.1.4.1.319.10.200.6 reports 2 (error). 1.3.6.1.4.1.319.10.130.1.1 shows 0 receiving cards, and 1.3.6.1.4.1.319.10.120.1.4 indicates 0 Ethernet connections.
¶ COEX Series Controller and SNMP OID Parameter Comparison
N in the OID denotes a numerical value and takes a value in the range of 1 to the maximum value of the quantity (the maximum value of the quantity is obtained by the corresponding OID).
¶ SNMP Get (Read-only)
¶ Controller Information
|
Function |
OID |
Data Type |
Controller Type |
Description |
|
OID version |
1.3.6.1.4.1.319.10.1 |
string |
Single-card & Card-based |
|
|
Controller time and date |
1.3.6.1.4.1.319.10.10.1.1 |
string |
Single-card & Card-based |
2006/01/03 15:04:05 |
|
Controller Model |
1.3.6.1.4.1.319.10.10.1.2 |
string |
Single-card & Card-based |
\ |
|
Controller firmware version |
1.3.6.1.4.1.319.10.10.1.3 |
string |
Single-card & Card-based |
\ |
|
Controller Name |
1.3.6.1.4.1.319.10.10.1.4 |
string |
Single-card & Card-based |
\ |
|
Controller primary/backup status |
1.3.6.1.4.1.319.10.10.1.5 |
int |
Single-card & Card-based |
0: Primary 1: Backup |
|
Controller serial number |
1.3.6.1.4.1.319.10.10.1.6 |
string |
Single-card & Card-based |
\ |
|
Controller MAC address |
1.3.6.1.4.1.319.10.10.1.7 |
string |
Single-card & Card-based |
\ |
|
Controller IP address |
1.3.6.1.4.1.319.10.10.1.8 |
string |
Single-card & Card-based |
192.168.12.34 |
¶ Controller Status
|
Function |
OID |
Data Type |
Controller Type |
Description |
|
Number of mainboard temperature measurement points |
1.3.6.1.4.1.319.10.10.10.1 |
int |
Single-card & Card-based |
N ≥ 0 |
|
Name of mainboard temperature measurement point N |
1.3.6.1.4.1.319.10.10.10.2.N.1 |
string |
Single-card & Card-based |
|
|
Status of mainboard temperature measurement point N |
1.3.6.1.4.1.319.10.10.10.2.N.2 |
int |
Single-card & Card-based |
0: Normal 1: Warning 2: Fault |
|
Value of mainboard temperature measurement point N |
1.3.6.1.4.1.319.10.10.10.2.N.3 |
int |
Single-card & Card-based |
Value = Temperature * 100 |
|
Number of mainboard voltage measurement points |
1.3.6.1.4.1.319.10.10.10.3 |
int |
Single-card & Card-based |
|
|
Name of mainboard voltage measurement point N |
1.3.6.1.4.1.319.10.10.10.4.N.1 |
string |
Single-card & Card-based |
|
|
Status of mainboard voltage measurement point N |
1.3.6.1.4.1.319.10.10.10.4.N.2 |
int |
Single-card & Card-based |
0: Normal 1: Warning 2: Fault |
|
Value of mainboard voltage measurement point N |
1.3.6.1.4.1.319.10.10.10.4.N.3 |
int |
Single-card & Card-based |
Value = Voltage * 100 |
|
Number of fans |
1.3.6.1.4.1.319.10.10.10.5 |
int |
Single-card & Card-based |
|
|
Name of fan N |
1.3.6.1.4.1.319.10.10.10.6.N.1 |
string |
Single-card & Card-based |
|
|
Status of fan N |
1.3.6.1.4.1.319.10.10.10.6.N.2 |
int |
Single-card & Card-based |
0: Normal 1: Warning 2: Fault |
|
Rotating speed of fan N |
1.3.6.1.4.1.319.10.10.10.6.N.3 |
int |
Single-card & Card-based |
|
|
Number of controller power supplies |
1.3.6.1.4.1.319.10.10.10.7 |
int |
Single-card & Card-based |
|
|
Status of controller power supply N |
1.3.6.1.4.1.319.10.10.10.8.N.1 |
int |
Single-card & Card-based |
0: Unplugged 1: Plugged |
|
Genlock connection status |
1.3.6.1.4.1.319.10.10.10.9.1 |
int |
Single-card & Card-based |
0: Not connected 1: Connected |
|
Genlock frame rate |
1.3.6.1.4.1.319.10.10.10.9.2 |
int |
Single-card & Card-based |
Value = Genlock frame rate * 100 |
¶ Output Card Slot Information
|
Function |
OID |
Data Type |
Controller Type |
Description |
|
Number of output card slots (N) |
1.3.6.1.4.1.319.10.10.30.1 |
int |
Single-card & Card-based |
N ≥ 0 For single-card controllers, N is always 1. |
|
Output card slot status |
1.3.6.1.4.1.319.10.10.30.2 |
Counter64 |
Single-card & Card-based |
Each bit represents a slot status, from low to high. 0: Connection normal 1: Disconnected |
|
Card firmware version of output card slot N |
1.3.6.1.4.1.319.10.10.30.3.N.1 |
string |
Card-based |
|
|
Card name of output card slot N |
1.3.6.1.4.1.319.10.10.30.3.N.2 |
string |
Card-based |
|
|
Card primary/backup status of output card slot N |
1.3.6.1.4.1.319.10.10.30.3.N.3 |
int |
Card-based |
0: primary |
|
Card SN of output card slot N |
1.3.6.1.4.1.319.10.10.30.3.N.4 |
string |
Card-based |
|
¶ Output Card Slot Status
|
Function |
OID |
Data Type |
Controller Type |
Description |
|
Number of card temperature measurement points of output card slot N |
1.3.6.1.4.1.319.10.10.30.4.N.1 |
int |
Card-based |
|
|
Name of temperature measurement point Y of output card slot N |
1.3.6.1.4.1.319.10.10.30.4.N.2.Y.1 |
string |
Card-based |
N: Output card slot N Y: Measurement point number for a specific metric. |
|
Temperature status of temperature measurement point Y of output card slot N |
1.3.6.1.4.1.319.10.10.30.4.N.2.Y.2 |
int |
Card-based |
0: Normal 1: Abnormal |
|
Temperature of temperature measurement point Y of output card slot N |
1.3.6.1.4.1.319.10.10.30.4.N.2.Y.3 |
int |
Card-based |
Value = Temperature * 100 |
|
Number of card voltage measurement points of output card slot N |
1.3.6.1.4.1.319.10.10.30.4.N.3 |
int |
Card-based |
|
|
Name of voltage measurement point Y of output card slot N |
1.3.6.1.4.1.319.10.10.30.4.N.4.Y.1 |
string |
Card-based |
|
|
Voltage status of voltage measurement point Y of output card slot N |
1.3.6.1.4.1.319.10.10.30.4.N.4.Y.2 |
int |
Card-based |
0: Normal 1: Abnormal |
|
Voltage of voltage measurement point Y of output card slot N |
1.3.6.1.4.1.319.10.10.30.4.N.4.Y.3 |
int |
Card-based |
Value = Voltage * 100 |
|
Number of card Ethernet ports of output card slot N |
1.3.6.1.4.1.319.10.10.30.5.N.1 |
int |
Single-card & Card-based |
|
|
Connection speed of card Ethernet ports of output card slot N |
1.3.6.1.4.1.319.10.10.30.5.N.2 |
int |
Single-card & Card-based |
0: Ethernet1G 2: Ethernet5G 3: Ethernet10G |
|
Connection status of card Ethernet ports of output card slot N |
1.3.6.1.4.1.319.10.10.30.5.N.3 |
Counter64 |
Single-card & Card-based |
Each bit represents a link status, from low to high. 0: Connection normal |
|
Number of online receiving cards of Ethernet port Y of output card slot N |
1.3.6.1.4.1.319.10.10.30.5.N.4.Y.1 |
int |
Single-card & Card-based |
|
|
Temperature status of receiving card M (1-64) of Ethernet port Y of output card slot N |
1.3.6.1.4.1.319.10.10.30.6.N.1.Y.1.M |
Counter64 |
Single-card & Card-based |
Each bit represents a receiving card temperature status, from low to high. 0: Normal |
|
Voltage status of receiving card M (1-64) of Ethernet port Y of output card slot N |
1.3.6.1.4.1.319.10.10.30.6.N.1.Y.2.M |
Counter64 |
Single-card & Card-based |
Each bit represents a receiving card voltage status, from low to high. 0: Normal |
|
Number of online receiving cards of output card slot N |
1.3.6.1.4.1.319.10.10.30.4.N.5 |
Counter64 |
Single-card & Card-based |
|
|
Back up port index corresponding to card Ethernet port Y of output slot N |
1.3.6.1.4.1.319.10.10.30.5.N.4.Y.3.1 |
int |
Single-card & Card-based |
N: Output card slot N For single-card controllers, N is always 1. Y: Ethernet port index |
|
Back up port operating status corresponding to card Ethernet port Y of output slot N |
1.3.6.1.4.1.319.10.10.30.5.N.4.Y.3.2 |
int |
Single-card & Card-based |
N: Output card slot N For single-card controllers, N is always 1. Y: Ethernet port index 0: Normal 1: Warning 2: Fault |
|
Back up port link status corresponding to card Ethernet port Y of output slot N |
1.3.6.1.4.1.319.10.10.30.5.N.4.Y.3.3 |
int |
Single-card & Card-based |
¶ Screen Information
|
Function |
OID |
Data Type |
Controller Type |
Description |
|
Number of screens (N) |
1.3.6.1.4.1.319.10.20.1.1 |
int |
Single-card & Card-based |
N ≥ 0 For single-card controllers, N is always 1. |
|
Name of screen N |
1.3.6.1.4.1.319.10.20.1.2.N.1 |
string |
Single-card & Card-based |
|
|
Width of screen N |
1.3.6.1.4.1.319.10.20.1.2.N.2 |
int |
Single-card & Card-based |
Width of the screen's circumscribed rectangle (pixel) |
|
Height of screen N |
1.3.6.1.4.1.319.10.20.1.2.N.3 |
int |
Single-card & Card-based |
Hight of the screen's circumscribed rectangle (pixel) |
|
Frame rate of screen N |
1.3.6.1.4.1.319.10.20.1.2.N.4 |
int |
Single-card & Card-based |
Value = Genlock frame rate * 100 |
|
Brightness of screen N (String format: Brightness 44.6% = 44.6) |
1.3.6.1.4.1.319.10.20.1.2.N.5 |
string |
Single-card & Card-based |
0 =< Brightness <= 100 |
|
Sync type of screen N |
1.3.6.1.4.1.319.10.20.1.2.N.6 |
int |
Single-card & Card-based |
0: Current video source 1: Genlock 2: Internal |
|
Sync frame rate of screen N |
1.3.6.1.4.1.319.10.20.1.2.N.7 |
int |
Single-card & Card-based |
Value = Genlock frame rate * 100 |
|
Set the display mode for screen N |
1.3.6.1.4.1.319.10.20.1.2.N.8 |
int |
Single-card & Card-based |
0: Normal 1: Black Screen 2: Freeze |
|
Active source status of screen N |
1.3.6.1.4.1.319.10.20.1.2.N.11 |
int |
Single-card & Card-based |
0: Normal 2: Fault |
Note: Screen N brightness is read/write information, while Screen N active source status is for retrieval/reporting.
¶ Input Card Slot Information
|
Function |
OID |
Data Type |
Controller Type |
Description |
|
Number of input card slots |
1.3.6.1.4.1.319.10.10.20.1 |
int |
Single-card & Card-based |
|
|
Input Card Slot Status |
1.3.6.1.4.1.319.10.10.20.2 |
Counter64 |
Single-card & Card-based |
Each bit represents a slot status, from low to high. 0: Connection normal 1: Disconnected |
|
Card firmware version of input card slot N |
1.3.6.1.4.1.319.10.10.20.3.N.1 |
string |
Single-card & Card-based |
N: Input card slot N For single-card controllers, N is always 1. |
|
Card name of input card slot N |
1.3.6.1.4.1.319.10.10.20.3.N.2 |
string |
Single-card & Card-based |
|
|
Card primary/backup status of input card slot N |
1.3.6.1.4.1.319.10.10.20.3.N.3 |
int |
Single-card & Card-based |
0: Primary 1: Backup |
|
Card SN of input card slot N |
1.3.6.1.4.1.319.10.10.20.3.N.4 |
string |
Single-card & Card-based |
N: Input card slot N For single-card controllers, N is always 1. |
¶ Input Card Slot Status
|
Function |
OID |
Data Type |
Controller Type |
Description |
|
Number of card temperature measurement points (Y) of input card slot N |
1.3.6.1.4.1.319.10.10.20.4.N.1 |
int |
Card-based |
Y ≥ 0 |
|
Name of temperature measurement point Y of input card slot N |
1.3.6.1.4.1.319.10.10.20.4.N.2.Y.1 |
string |
Card-based |
|
|
Temperature status of temperature measurement point Y of input card slot N |
1.3.6.1.4.1.319.10.10.20.4.N.2.Y.2 |
int |
Card-based |
0: Normal 2: Fault |
|
Temperature of temperature measurement point Y of input card slot N |
1.3.6.1.4.1.319.10.10.20.4.N.2.Y.3 |
int |
Card-based |
Value = Temperature * 100 |
|
Number of card voltage measurement points of input card slot N |
1.3.6.1.4.1.319.10.10.20.4.N.3 |
int |
Card-based |
|
|
Name of voltage measurement point Y of input card slot N |
1.3.6.1.4.1.319.10.10.20.4.N.4.Y.1 |
string |
Card-based |
|
|
Voltage status of voltage measurement point Y of input card slot N |
1.3.6.1.4.1.319.10.10.20.4.N.4.Y.2 |
int |
Card-based |
0: Normal 2: Fault |
|
Voltage of voltage measurement point Y of input card slot N |
1.3.6.1.4.1.319.10.10.20.4.N.4.Y.3 |
int |
Card-based |
Value = Voltage * 100 |
¶ Input Source Information
|
Function |
OID |
Data Type |
Controller Type |
Description |
|
Number of card input sources of input card slot (N) |
1.3.6.1.4.1.319.10.10.20.5.N.1 |
int |
Single-card & Card-based |
N ≥ 0 |
|
Signal status of input source Y of input card slot N |
1.3.6.1.4.1.319.10.10.20.5.N.2.Y.1 |
int |
Single-card & Card-based |
0: Not inserted |
|
Type of input source Y of input card slot N |
1.3.6.1.4.1.319.10.10.20.5.N.2.Y.2 |
string |
Single-card & Card-based |
0: DVI 1: DualDVI 2: HDMI1.4 3: HDMI2.0 4: DP1.1 5: DP1.2 6: DP1.4 7: 3G-SDI 8: 6G-SDI 9: 12G-SDI 10: PIP Video 16: HDMI1.3 17: HDMI2.1 18: PCIE 19: Serdes 20: LVDS 21: VByOne 22: ST 2110 224: internal-source Other value: Unknown |
|
Application status of input source Y of input card slot N |
1.3.6.1.4.1.319.10.10.20.5.N.2.Y.3 |
int |
Single-card & Card-based |
0: Normal 2: Fault |
- Internal Source Information
|
Function |
OID |
Data Type |
Controller Type |
Description |
|
Number of internal sources (N) |
1.3.6.1.4.1.319.10.10.50.1 |
int |
Single-card & Card-based |
N ≥ 1 |
|
Number of screens applying internal source N |
1.3.6.1.4.1.319.10.10.50.2.N.1 |
int |
Single-card & Card-based |
0: Not applied |
|
Link status of internal source N |
1.3.6.1.4.1.319.10.10.50.2.N.2 |
int |
Single-card & Card-based |
0: Not inserted |
¶ SNMP Set (Read and Write)
| Function | OID | Data Type | Controller Type | Description |
| SNMP Trap server | 1.3.6.1.4.1.319.10.200.1 | string | Single-card & Card-based | IP/Port |
| SNMP Trap reporting period | 1.3.6.1.4.1.319.10.200.2 | int | Single-card & Card-based | Unit: min |
| Temperature Unit | 1.3.6.1.4.1.319.10.200.3 | int | Single-card & Card-based | 0: Fahrenheit 1: Celsius |
| Trap On/Off | 1.3.6.1.4.1.319.10.200.4 | int | Single-card & Card-based |
1: On 2: Off |
| Trap Mode | 1.3.6.1.4.1.319.10.200.5 | int | Single-card & Card-based |
0: Sample Mode 1: Complex Mode |
| OID Monitoring Status | 1.3.6.1.4.1.319.10.200.6 | int | Single-card & Card-based |
0: Normal 2: Fault |
|
Brightness of screen N (String format: Brightness 44.6% = 44.6) |
1.3.6.1.4.1.319.10.20.1.2.N.5 | int | Single-card & Card-based | 0 =< Brightness <= 100 |
¶ SNMP Trap (Reporting)
¶ Controller Information Reporting
|
Function |
OID |
Data Type |
Controller Type |
Description |
|
Mainboard abnormal |
1.3.6.1.4.1.319.10.100. N |
int |
Single-card & Card-based |
N: controller temperature 1, voltage 2, fan 3 |
|
Number of input cards connected |
1.3.6.1.4.1.319.10.100.4 |
int |
Single-card & Card-based |
|
|
Number of output cards connected |
1.3.6.1.4.1.319.10.100.5 |
int |
Single-card & Card-based |
|
|
Number of expansion cards connected |
1.3.6.1.4.1.319.10.100.6 |
int |
Single-card & Card-based |
|
|
Genlock connection status |
1.3.6.1.4.1.319.10.100.7 |
int |
Single-card & Card-based |
0: Not connected |
|
SNMP Start Time |
1.3.6.1.4.1.319.10.100.8 |
string |
Single-card & Card-based |
|
¶ Input Anomaly Reporting
|
Function |
OID |
Data Type |
Controller Type |
Description |
|
Input card abnormal |
1.3.6.1.4.1.319.10.110. N. Y |
int |
Single-card & Card-based |
N: Input card slot N Y: Input card temperature 1, voltage 2, fan 3 |
|
Number of sources of an input card |
1.3.6.1.4.1.319.10.110. N.4 |
int |
Single-card & Card-based |
¶ Output Anomaly Reporting
|
Function |
OID |
Data Type |
Controller Type |
Description |
|
Output card abnormal |
1.3.6.1.4.1.319.10.120.N.Y |
int |
Single-card & Card-based |
N: Output card slot N Y: Output card temperature, voltage, fan |
|
Number of Ethernet ports connected of an output card |
1.3.6.1.4.1.319.10.120.N.4 |
int |
Single-card & Card-based |
N: Output card slot N |
|
Number of receiving cards connected to all ports of an output card |
1.3.6.1.4.1.319.10.120.N.Y.5 |
int |
Single-card & Card-based |
N: Output card slot N Y: Ethernet port index |
|
Number of receiving cards with abnormal temperature connected to all ports of an output card |
1.3.6.1.4.1.319.10.120.N.Y.6 |
int |
Single-card & Card-based |
|
|
Number of receiving cards with abnormal voltage connected to all ports of an output card |
1.3.6.1.4.1.319.10.120.N.Y.7 |
int |
Single-card & Card-based |
¶ Multifunction Card Information Reporting
|
Function |
OID |
Data Type |
Controller Type |
Description |
|
Multifunction card power supply status |
1.3.6.1.4.1.319.10.10.30.7.N.1.Y.Z.1.M.1 |
int |
Single-card & Card-based |
N: Output card slot Y: Ethernet port Z: Multifunction card M: Power supply index 0: Failed 1: Normal |
|
Status of the light sensor connected to the multifunction card. |
1.3.6.1.4.1.319.10.10.30.7.N.1.Y.Z.2.M.1.1 |
int |
Single-card & Card-based |
N: Output card slot Y: Ethernet port Z: Multifunction card M: Light sensor index 0: Failed 1: Normal Brightness in LUX |
|
Brightness of the light sensor connected to the multifunction card |
1.3.6.1.4.1.319.10.10.30.7.N.1.Y.Z.2.M.1.2 |
int |
Single-card & Card-based |
¶ Screen Information Reporting
|
Function |
OID |
Data Type |
Controller Type |
Description |
|
Number of receiving cards connected of screen N |
1.3.6.1.4.1.319.10.130.N.1 |
int |
Single-card & Card-based |
|
|
Number of receiving cards with abnormal temperature of screen N |
1.3.6.1.4.1.319.10.130.N.2 |
int |
Single-card & Card-based |
|
|
Number of receiving cards with abnormal voltage of screen N |
1.3.6.1.4.1.319.10.130.N.3 |
int |
Single-card & Card-based |
|
We consistently enhance and refine the content of our Wiki articles.
If you find any mistakes or errors, please contact us.
Your continuous feedback and support will help us further improve our products and content.
